The function of a monobloc amplifier with separate power supply, is to provide control to a speaker.
The hard part is to ensure, at the same time, the high quality of the final result: refinement, musicality and coherence.
HARMUNIA chose to separate the power to preserve the signal from EMI-RFI and vibration, pointing straight to the absolute performance.
The Listening is crucial to appreciate the quality of this realization.
From the moment the music starts, there is a clear feeling of living an exceptional music experience.
The sound emerges from a fund iperscuro revealing micro and macro details, attacks and releases: Exploring the performance typically reserved for live music.
|
 |
|
|
| |
|
 |
The speed, articulation, control of the low points out the event with a resolution and accuracy structural breathtaking.
Around artists and groups of instruments creating a space that makes sense a real stage, where the sound levels are quite distinct and sharp focus, while the sound emerges with surprising airiness.
The dynamic range seems to have no limits, steps from pianissimo to fortissimo run with speed and without any effort or tension, resulting in the listener the feeling of the typical live performance.

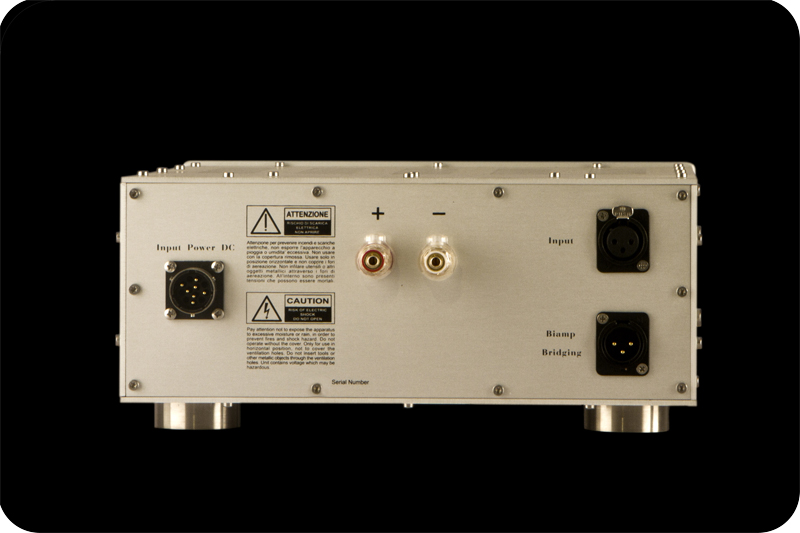

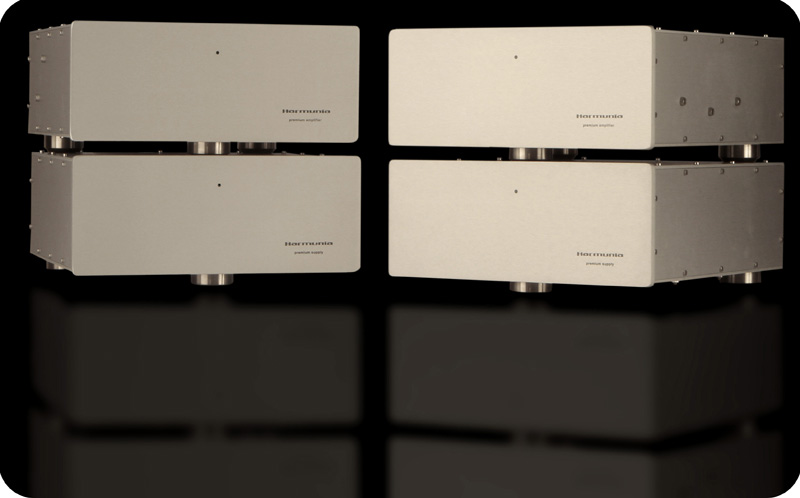

HARMUNIA PREMIUM AMPLIFIER has a sober and professional monochrome, with rigid structure and, where possible, damped, conceived solely in terms of absolute performance.
| |
| |
|
HARMUNIA PREMIUM AMPLIFIER where possible and in any case according to specific rules of physics, has a structural components modified with dampers in order to lower the mechanical resonance frequency, due to serious deterioration music.

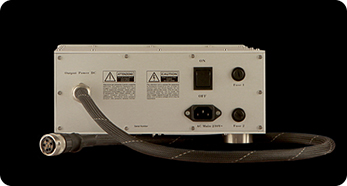

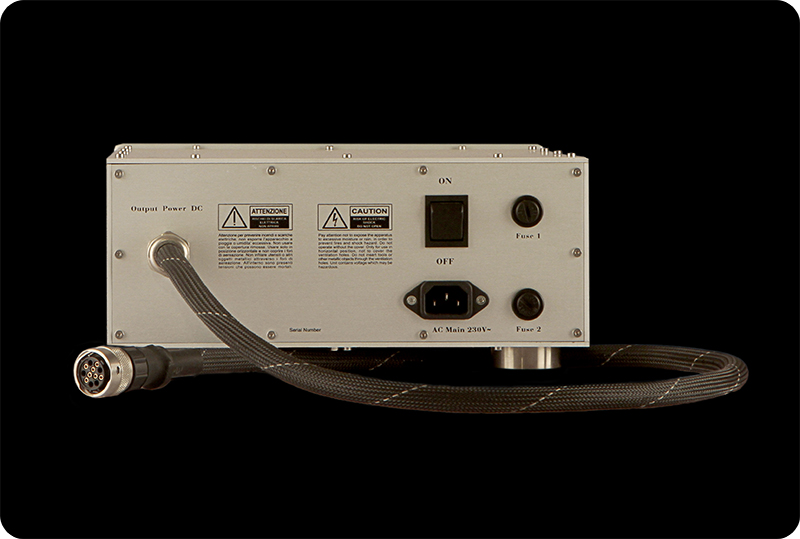

Internally the PREMIUM POWER SUPPLY has two independent power supplies: one for the signal and a special driver for power with the built-HF FILTER. The PREMIUM AMPLIFIER with push-pull circuitry has only one driver and one POSITIVE NEGATIVE to preserve its extraordinary neutrality, transparency and harmonic richness.
Visually sophisticated and sound performance for absolute quality, the PREMIUM AMPLIFIER represents the state of the art laboratories HARMUNIA
|
|
| |
|
|
|
|
| |
|
Specifice Tecniche |
|
| |
|
| |
|
| Operation: |
Class AB1 |
| Rated Power: |
55 WATT RMS 8 OHM / 110 WATT RMS 4 OHM |
| Bridge: |
220 WATT RMS 8 OHM |
| Harmonic Distortion |
20hz-20khz 0,1% 4 / 8 ohm 20volt output |
| Frequency response |
20 hz 20 khz - 0.2 db |
| Noise |
1 khz 20volt 1 khz 110 db |
| Separation L / R |
Infinity |
| Input Impedance |
5 Kohm balanced 350 Kohm unbalanced |
| Input Sensitivity |
380mV balanced 760mV unbalanced |
| Gain |
34 dB balanced 28 dB unbalanced |
| Management Impedance |
Pilot easily loads up to 1 ohm |
| Dimension |
Amplifier 28,6 x 13,3 x 32,4 (L x A x P cm) weight 7 kg about each ( mono ) |
| |
Power pack 28,6 x 13,3 x 32,4 (L x A x P cm) weight 13 kg about each ( mono ) |
| |
|
| Recommended media uncoupling |
| |
|
|
|
| |
|
|
|
|
|
